Description

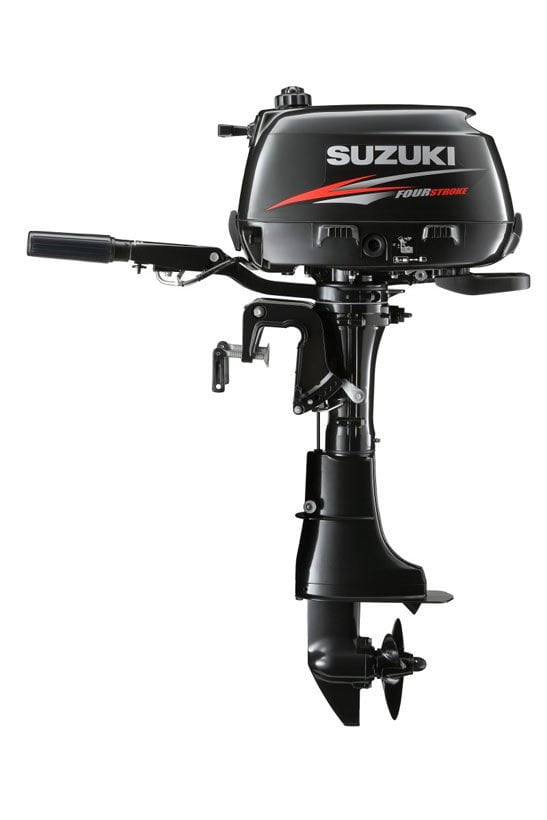

SUZUKI DF6AS
Suzuki DF6A brings the advantages of advanced clean burning, fuel saving four stroke technology available to the portable engine user. Ease of operation and handling ranked very highly in the design criteria and power is provided by a single cylinder OHV engine with a displacement of 138 cc. This light weight four stroke outboard produces excellent low to mid range torque and fast acceleration. A digital capacitor discharge ignition system combines the ignition coil and control processor into a corrosion resistant single unit which produces precise control of the ignition timing, gives stable idling and has a built in rev limiter. The tiller handle is mounted on the steering bracket allowing the operator to sit well forward improving weight distribution. Other features include 180 degree steering providing good maneuverability even in shallow water drive, a 1.0 liter integral fuel tank and a large carrying handle.
SUZUKI DF6AS
| MAXIMUM OUTPUT, HP/KW | 6.0 / 4.4 |
|---|---|
| DISPLACEMENT, CC | 138 |
| NUMBER OF CYLINDERS | 1 cilinder |
| FULL THROTTLE, RPM | 4750-5750 |
| STEERING | Tiller |
| STARTING SYSTEM | Manual |
| FUEL SYSTEM | carburetor |
| SHAFT LENGTH, MM | 381 |
| FUEL TANK, L | 1,0 |
| GEAR RATIO | 1.92:1 |
| ENGINE WEIGHT, KG | 23,5 |
